RP 500Boost Your Business
The RP 500 Production Line includes all machines required for a semi-automatic production line to fill, cap and label any thick or high viscous products, pastes and liquids. It can be used to bottle products such as detergents, lotions and cosmetic products, spreads like jam and peanut butter and a variety of mayonnaise products and sauces and many liquid type products.
RP 500 Production Line Quick Facts
Filling Range
5 – 5000ml
Filling Rate
5 – 60 bottles p/minute
Universal Capper
flat cap bottles and jars; cosmetic, medical, chemical
Labelling Speed
10 – 40 bottles p/minute
The RP 500 Production Line includes the following machines:
Filling Machines:

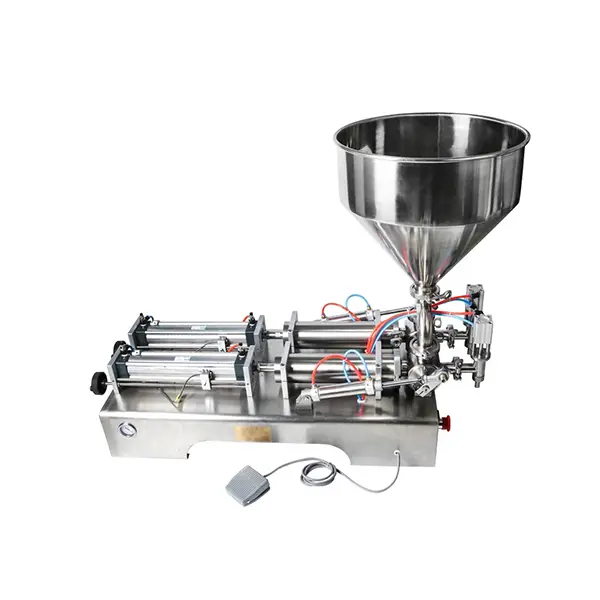

Semi-automatic Double Head Bottle Filling Machine
Can be used with a suction pipe and hopper interchangeably.
Voltage: 220V.
Power: 40W.
Weight: 45kg
Filling Range: 5 – 5000ml.
Filling Accuracy: 99%.
Filling Product: Liquid, Gel & Paste.
Production Rate: 5 – 60 bottles per minute.
Machine dimensions (LxWxH): 1000 x 500 x 150mm.
Filling capacity: 5 – 50ml; 10 – 100ml; 50 – 1000ml; 1000 – 5000ml.
Air Pressure: 0,4 – 0,6 Mpa.
Hopper size: 30 & 40 litre.
- Double filling nozzle/ head.
- AirTac pneumatic components.
- Filling volume easily adjustable on spindle.
- Filling speed easily adjustable on air restrictors.
- Can be used with a suction pipe and hopper interchangeably.

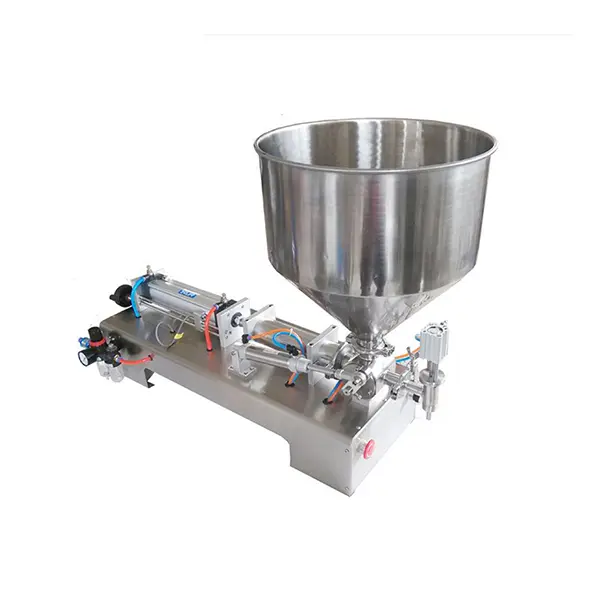

Semi-automatic Single Head Bottle Filling Machine
Can be used with a suction pipe and hopper interchangeably
Voltage: 220V.
Weight: 35kg.
Filling Range: 5 – 5000ml.
Filling Accuracy: 99%.
Filling Product: Liquid, Gel & Paste.
Production rate: 5 – 40 bottles per minute.
Machine size (LxWxH): 1000 x 280 x 150mm.
Filling capacity: 5l – 50ml; 10 – 100ml; 50 – 1000ml; 1000 – 5000ml.
Air Pressure: 0,4 – 0,6 mpa.
Hopper size: 30 litre & 40 litre.
- Single nozzle/ head.
- AirTac pneumatic components.
- Filling volume easily adjustable on spindle.
- Filling speed easily adjustable on air restrictors.
- Can be used with a suction pipe and hopper interchangeably.
Semi-automatic Digital Filling Machine
LCD display, touch panel operation convenient and simple.
Voltage: 220V.
Filling Nozzles: 1 or 2.
Filling Accuracy: 99.5%.
Filling Range: 5 – 3500ml.
Filling Product: Liquid & Oil.
Production rate: 12 – 30 bottles per minute.
Maximum flow speed: 3.2 L/min.
Weight: 5.5 kg.
- Magnetic pump filling system.
- Suitable for low viscosity liquids.
- LCD display, touch panel operation convenient and simple.
- Filling volume and speed easily adjustable.
Capping Machines:

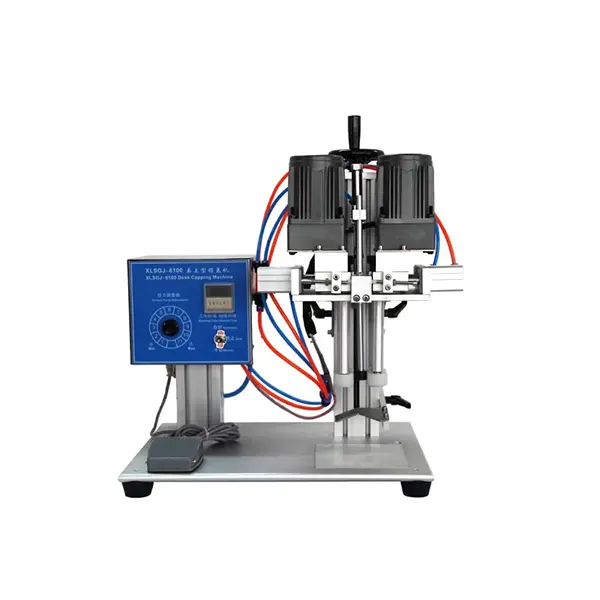

Desktop Bottle Capping Machine
Voltage: 220V
Weight: 30kg
Operation: Semi-automatic.
Machine dimensions (LxWxH): 60x45x60cm.
Capping Diameter: 15 – 65mm.
Capping Speed: 20-30 per minute.
Universal capper – flat caps, pop up caps, spray bottle caps, flip caps, sports caps.
Bottle height: 80 – 300mm.
Power: 220v, 90W.
Requires 0.4 – 0.6 MPA air supply.
- Torque easily adjustable.
- Digital display capping timer.
- Semi-automatic foot pedal operation is quick and easy.
Desktop Flat Cap Capping Machine
Voltage: 220V
Weight: 30kg
Operation: Semi-automatic
Machine dimensions: 40*40*58cm.
Capping Diameter: 10 – 50mm.
Capping Speed: 20-30 per minute.
Bottle height: 40 – 200mm.
Cap flat caps.
Power: 50W.
- Adjust speed at any time.
- Semi-automatic foot pedal operation is quick and easy.
- Electrically controlled movement, positioning device, easy operation.
- The capping speed and tightness can be adjusted for different caps.
- Caps a variety of flat cap bottles and jars; cosmetic, medical, chemical, drinks and more.
Labelling Machines:

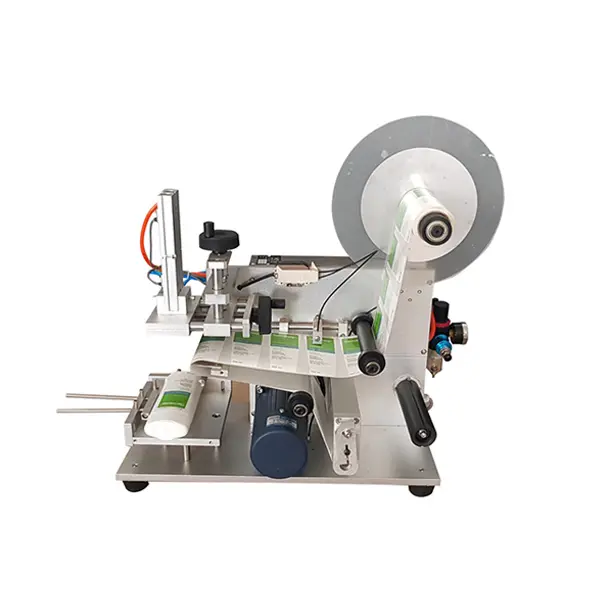

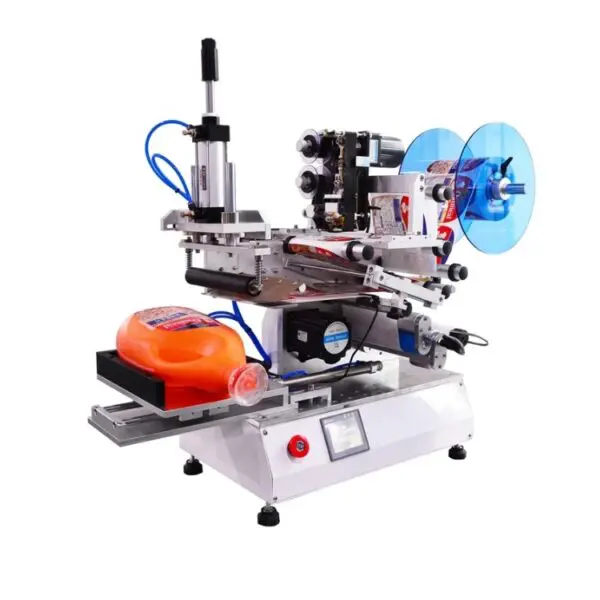

Semi-automatic Flat Bottle Labeling Machine
Voltage: 220V
Weight: 35kg
Bottle: Flat
Dimensions: 65 x 45 x 65cm
Label width: 10 – 120mm.
Role core size diameter: 75mm.
Maximum label roll diameter: 280mm.
Labelling accuracy: +/- 0.5mm
Labelling Speed: 25 – 40 per minute
Required air supply: 0.4 – 0.6Mpa.
- Used for flat bottle labelling.

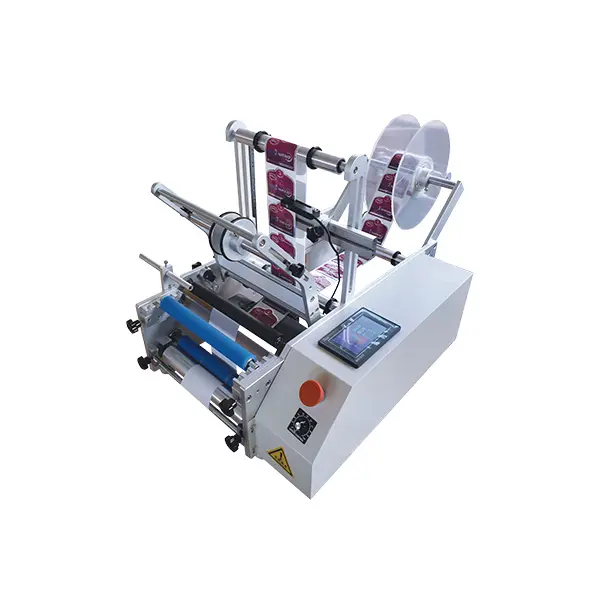

Semi-automatic Round Bottle Labeling Machine
This machine is available with or without the date code printer attached.
Voltage: 220V
Power: 40W.
Weight: 35kg.
Bottle: Round.
Dimensions: 650 x 500 x 380mm.
Labelling accuracy: +/- 0.5mm.
Labelling Speed: 10 – 20 bottles per minute.
Labelling Range: 10 – 2000ml bottles.
Diameter of bottle: 30 – 150mm.
Min. label size (WxL): 26mm x 25mm.
Max. Label size (WxL): 150mm x 180mm.
Outside diameter of label roll(max): 275mm.
Inside diameter of label roll: 75mm.
- Round bottle self adhesive label applicator.
- Used to label P.E.T, glass and metal bottles.
