RP 1000Upgrade Your Business
The RP 1000 Production Line includes all machines required for a complete production line to sort, fill, cap and label liquid and oil products. It can be used to bottle products such as adult beverages, juices, cosmetic and homeopathic oils and even bottle liquid sanitizers.
RP 1000 Production Line Quick Facts
In Feed Rotating Unscrambling Table
An in feed rotating, unscrambling table is an automatic bottle orientator which positions bottles of various types onto a moving conveyor belt system on a production line.
This unit sorts various bottle types, reducing labour intensity and improving efficiency. This unit is applied to the beginning of a conveyor belt system, production line for automatic bottle unscrambling in order to improve productivity.
Production capacity: 60 – 80 bottles per minute.
Machine dimensions (LxWxH): 1040 x 1040 x 900mm
Diameter: 1040mm
Machine weight: 80kg.
Rotating speed: 0 – 50 rpm.
Power: 220V / 500W.
Suitable bottle diameter: 20 – 100mm.
Suitable bottle height: 30 – 200mm.
304 stainless steel construction.
Includes speed control unit.

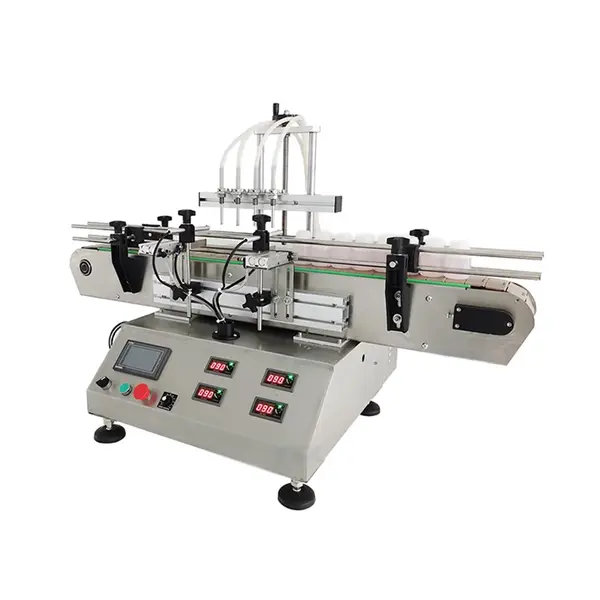

Fully Automatic 4 Head Digital Filling Machine
Voltage: 220V.
Filling Nozzles: 4.
Filling Accuracy: 99.5%.
Filling Range: 10ml – 500ml bottles.
Filling Product: Liquid & Oil.
Production rate: Up to 50 bottles per minute.
Power: 0.4KW.
Weight: 75kg.
Air pressure: 0.4 – 0.6 MPA.
Dimensions without stand (LxWxH): 1000 x 500 x 750mm.
Acid, alkaline and corrosion resistant.
Can fill corrosive liquid.
1 meter conveyor belt system.
Fills low viscosity liquid product.
304 stainless steel construction.
Touch screen interface.

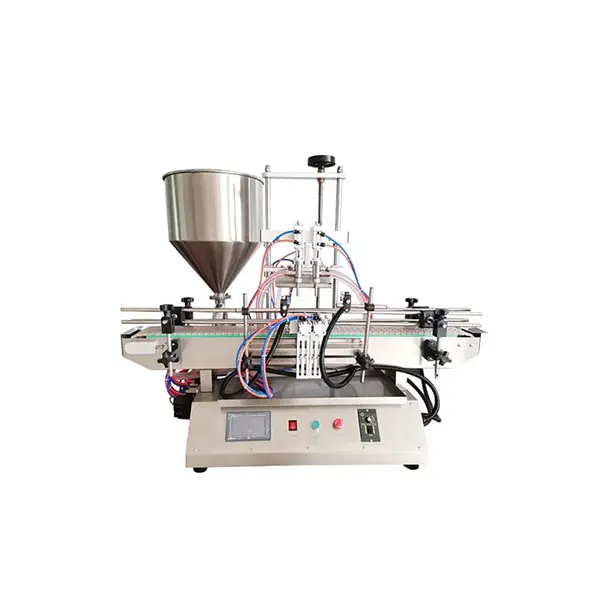

Fully Automatic 2 Head Liquid & Paste Filling Machine
Filling nozzles: 2
Product application: Liquid, thick liquid, paste and gels.
Speed: 400 – 900 bottles per hour
Filling range: 100 – 1000ml
Bottle diameter: 30 – 80mm
Bottle height: 60 – 200mm
Hopper capacity: 40 litre
Air pressure: 0.6 – 0.8 Mpa
Power: 220V / 0.6KW
Machine size: 1200 x 900 x 680mm
Machine weight: 85kg
PLC control, sensors, touch screen, conveyor belt

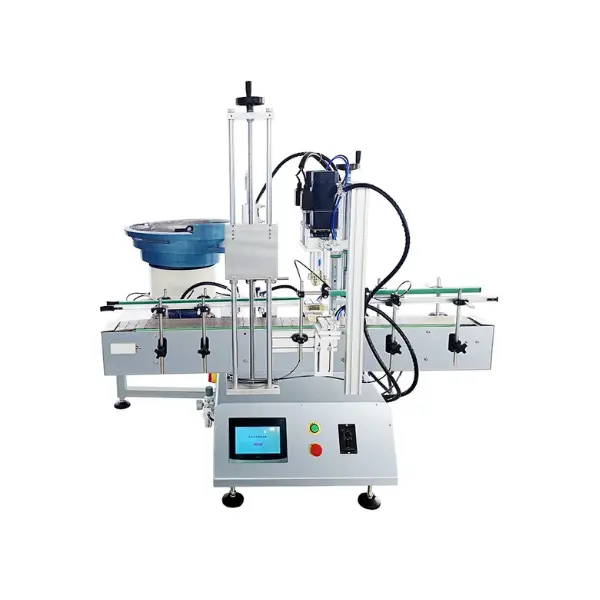

Fully Automatic Cap Placing and Tightening Machine
Voltage: 220V/110V 50/60HZ
Weight: 200 kg
Operation: Automatic
Dimensions (LxWxH): 1600 x 560 x 1850 mm
Capping Diameter: 20 – 50mm
Capping Speed: 25 bottles per minute
Bottle height: 50 – 320 mm
Capping parameters set on touch screen
1 meter conveyor belt system
Torque easily adjustable
Requires 0.4 – 0.6 MPA air source
Machine material: Stainless Steel
Fully Automatic Capping Machine
Power: 220V, 90W
Weight: 60kg
Operation: Automatic
Dimensions (LxWxH): 75 x 56 x 110cm
Capping Diameter: 20 – 50mm
Capping Speed: 20-45 per minute
Universal capper – flat caps, pop up caps, spray bottle caps, flip caps, sports caps.
Bottle height: 50 – 190mm.
Requires 0.4 – 0.6 MPA air source.
Touch screen display.
Capping parameters set on touch screen.
1 meter conveyor belt system.
Torque easily adjustable.

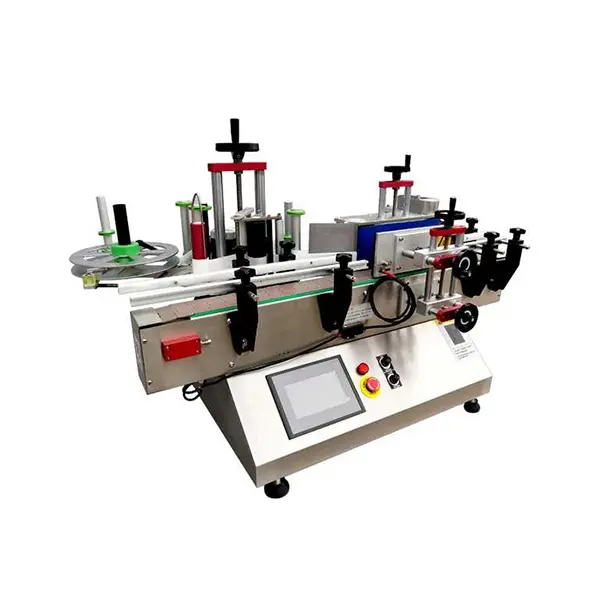

Fully Automatic Bottle Labelling Machine
Voltage: 220V
Weight: 80kg
Bottle: Round
Machine dimensions (LxWxH): 127 x 100 x 78cm
Labelling accuracy: +/- 1mm
Labelling Speed: 40 – 60 bottles per minute
Fully automatic self adhesive round bottle labelling machine.
Touch screen interface, PLC operation.
Label Size: (L)25-300mm x (H)15-180mm.
Label core diameter: 76mm; Maximum label roll diameter: 240mm.
Bottle Height: 25 – 350mm.
Bottle Diameter: 30 – 120mm.
Fully automatic self adhesive round bottle labelling machine.
Touch screen interface, PLC operation.
Table top unit or stand alone unit.
Label a variety of round bottles.
Minimum wastage.
Exit Rotating Collection Table
A rotating exit collection table collects and sorts various bottle types, reducing labour intensity and improving efficiency. This unit is applied to the end of a conveyor belt system, production line for automatic collection in order to improve productivity.
Production capacity: 60 – 80 bottles per minute.
Machine dimensions (LxWxH): 1040 x 1040 x 900mm
Diameter: 1040mm
Machine weight: 80kg.
Rotating speed: 0 – 50 rpm.
Power: 220V / 500W.
Suitable bottle diameter: 20 – 100mm.
Suitable bottle height: 30 – 200mm.
304 stainless steel construction.
Includes speed control unit.
