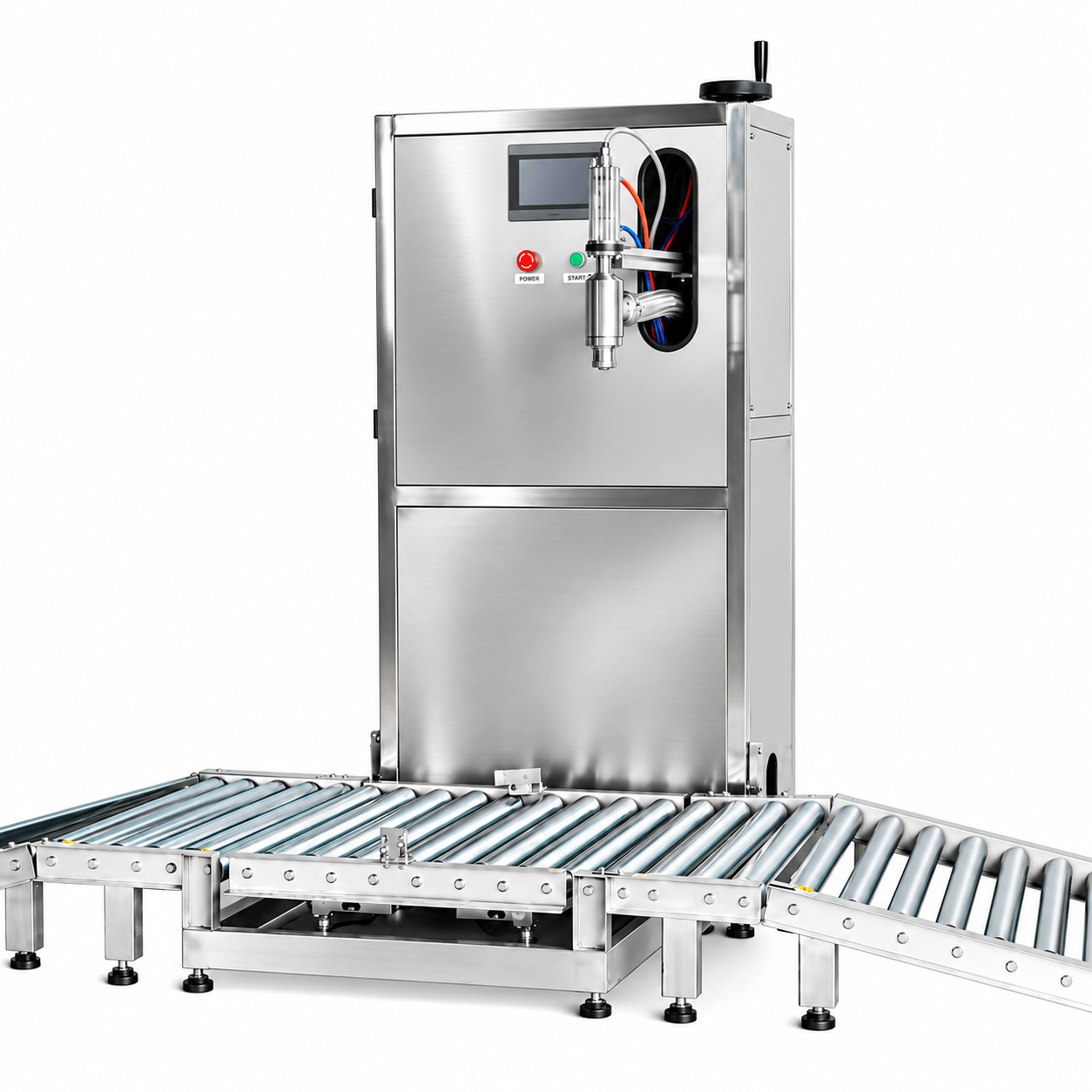

Semi Automatic Weight Scale Drum Filling Machine

Machine Details

  • Voltage: 380V, 50Hz
  • Power: 11.5 kW
  • Filling Pump: Gear Pump
  • Number of Filling Heads: 1
  • Filling Range: 100–250 L

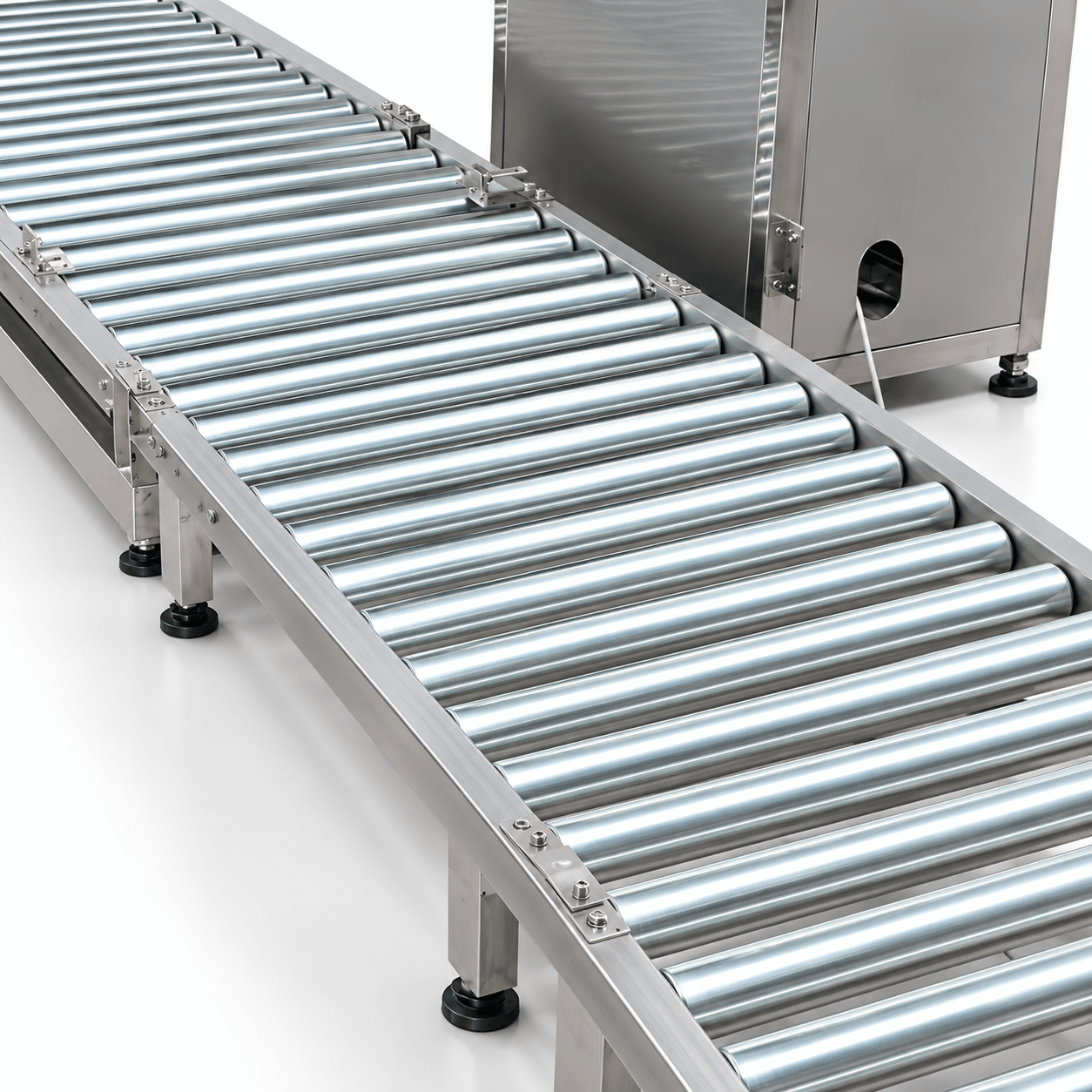

  • Conveyor Length: 5 m (can be customized)
  • Output: ≤45 barrels/hour (200 L)
  • Required Air Source: 0.6 MPa
  • Accuracy: ≤ ±0.2% (depends on filling material)
  • Machine Size: Approximately 450 × 1000 × 1700 mm
  • Package Size: Approximately 1360 × 1100 × 1840 mm
  • Package Weight: Approximately 420 kg

This Semi Automatic Weight Scale Drum Filling Machine fills liquid by controlling the filling weight. It is equipped with a gear pump and suitable for filling large volumes of liquid. It is suitable for daily use in the chemical industry.
