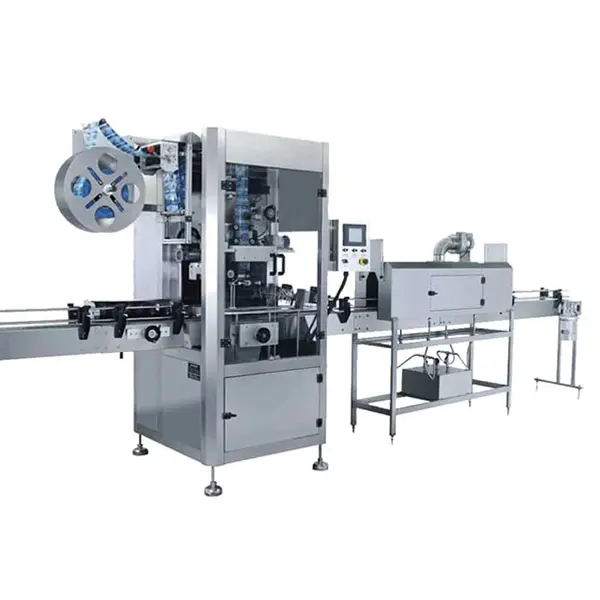

This steam shrink tunnel consists of 1 fully automatic shrink sleeve label applicator, 1 shrink sleeve steam tunnel and 1 steam generator.
Fully automatic shrink sleeve label applicator:
Power: 220V / 3KW
Production rate: 150 bottles per minute.
Machine dimensions (LxWxH): 2100 x 1100 x 2000mm.
Suitable bottle diameter: 28 – 125mm.
Suitable label length: 30 – 250mm.
Suitabel label thickness: 0.03 – 0.13mm.
Labelling accuracy: +/- 1mm.
Bottle height: 150 – 350mm.
Suitable bottle shape: cylindrical/ round.

Shrink sleeve steam tunnel:
Machine construction: 304 stainless steel.
Machine dimensions (LxWxH): 2000 x 400 x 1500mm.
Weight: 230kg.
Power: 220 / 380V / 0.75KW.
