Production Capacity: 8,000 – 10,000 bottles / hour
Applicable Product Diameter: 40 – 100 mm
Label Size: Core inner diameter: 152 mm | Max. roll outer diameter: 500 mm
| Label height: up to 200 mm
Labelling Precision: ± 1 mm
Cutting Positioning Accuracy: ± 1 mm
Non-Stop Downtime Rate: ≤ 1%
Glue Application Temperature: 120°C – 160°C
Speed Adjustment: Stepless (infinitely variable)
Power Supply: 380V, 50Hz
Total Installed Power: 16 kW
Air Consumption: < 0.15 m³ / min
Overall Dimensions (L × W × H): 2,580 × 2,300 × 2,100 mm

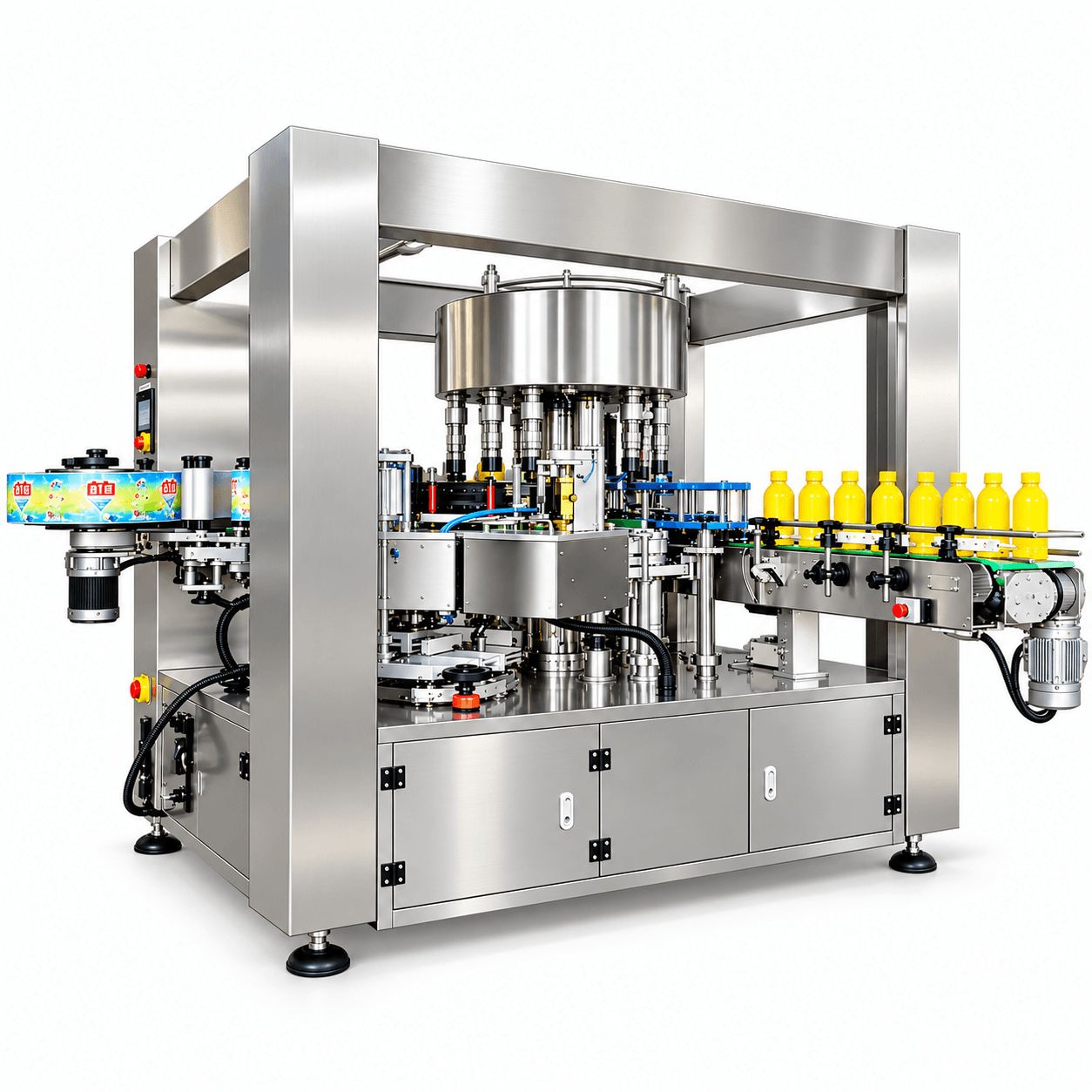

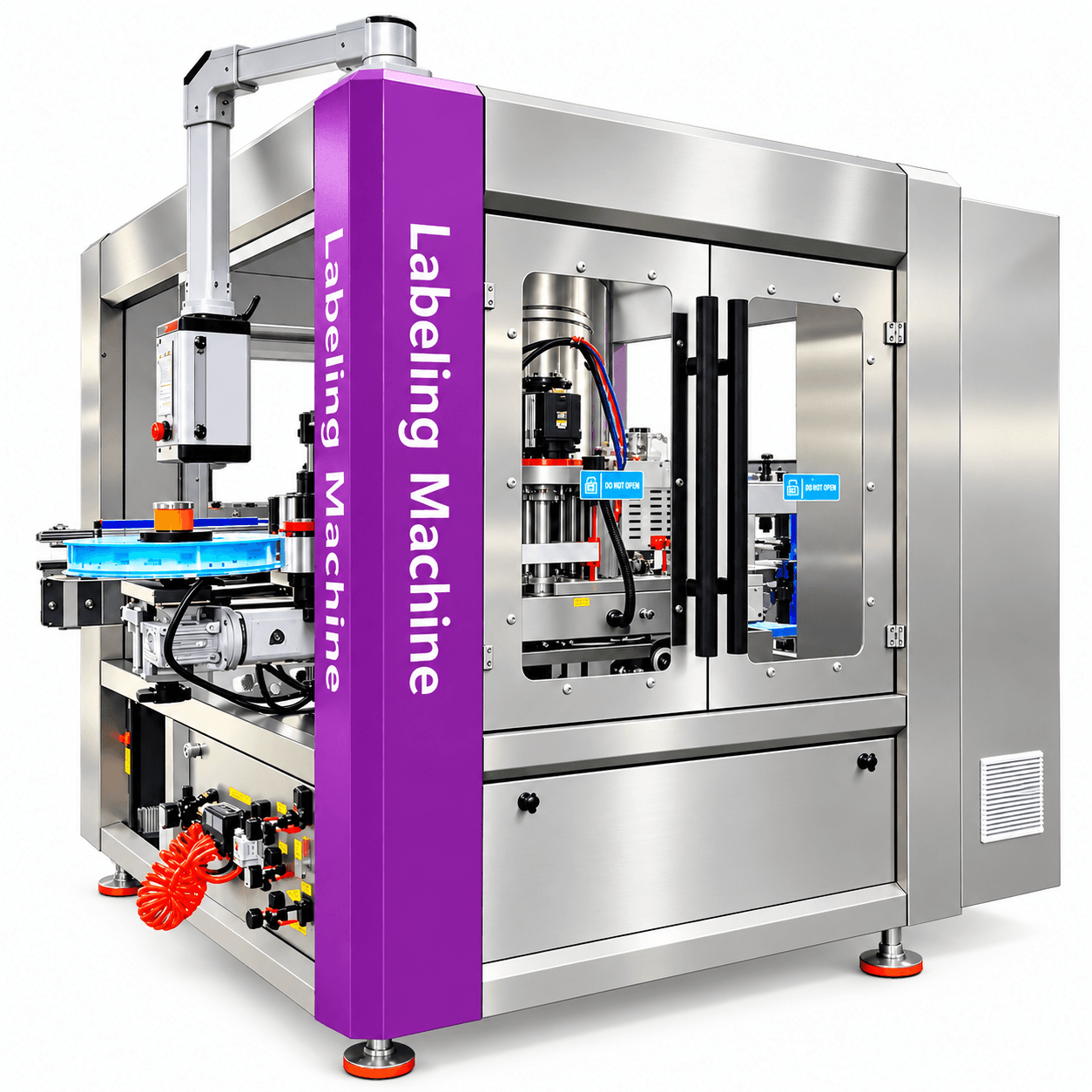

The Rhino-Pak Fully Automatic BOPP Hot-Melt Labelling Machine is a high-speed rotary labelling solution designed for precise and consistent wrap-around labelling of round containers. With a production capacity of 8,000–10,000 bottles per hour and labelling precision of ±1 mm, the machine uses servo-controlled label feeding, high-speed cutting, vacuum label transfer and hot-melt adhesive applied to the leading and trailing edges of each label. Its fully automatic PLC-controlled operation, automatic bottle feeding and alignment, stainless-steel construction, safety protection and centralised lubrication system make it suitable for demanding production environments requiring reliable, efficient and accurate BOPP labelling.
